C++ Stacks

What is a stack? How to implement stacks using C++?

• Stack is a last-in, first-out (LIFO) data structure. i.e. the element added last to the stack will be the one to be removed first.
• Typical use cases of stacks include:- (1) During debugging it is quite common to examine the function call stack during panics. (2) In RTOS like Symbian there are concepts like cleanup stack to avoid memory leaks.
• Some of the common terminology associated with stacks inlcude PUSH, POP and TOP of the stack.
• PUSH refers to adding an element to the stack.
• POP refers to removing an element from the stack.
• TOP refers to the first element that could be POPed (or) the last element PUSHed.

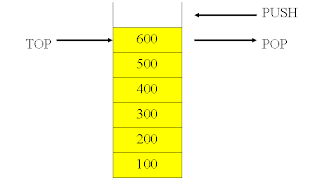

• Diagram below explains the stack.

EXAMPLE: Demonstrate the implementation of a simple stack using arrays.

#include <iostream>
using namespace std;

const int MAX_SIZE = 100;

class StackOverFlowException
{
    public:
        StackOverFlowException()
        {
            cout << "Stack overflow" << endl;
        }
};

class StackUnderFlowException
{
    public:
        StackUnderFlowException()
        {
            cout << "Stack underflow" << endl;
        }
};

class ArrayStack
{
    private:
        int data[MAX_SIZE];
        int top;
  public:
      ArrayStack()
      {
          top = -1;
    }

    void Push(int element)
    {
        if ( top >= MAX_SIZE )
            {
                throw new StackOverFlowException();
            }
            data[++top] = element;
    }

    int Pop()
    {
        if ( top == -1 )
            {
                throw new StackUnderFlowException();
            }
            return data[top--];
    }

    int Top()
    {
        return data[top];
    }

    int Size()
    {
        return top + 1;
    }

    bool isEmpty()
    {
        return ( top == -1 ) ? true : false;
    }
};

int main()
{
    ArrayStack s;
    try {
        if ( s.isEmpty() )
            {
            cout << "Stack is empty" << endl;
            }
        // Push elements
        s.Push(100);
        s.Push(200);
        // Size of stack
        cout << "Size of stack = " << s.Size() << endl;
        // Top element
        cout << s.Top() << endl;
        // Pop element
        cout << s.Pop() << endl;
        // Pop element
        cout << s.Pop() << endl;
        // Pop element
        cout << s.Pop() << endl;
    }
    catch (...) {
        cout << "Some exception occured" << endl;
    }
}
OUTPUT:-
Stack is empty
Size of stack = 2
200
200
100
Stack underflow
Some exception occured

EXAMPLE: Demonstrate the implementation of a simple stack using linked lists.

#include <iostream>
using namespace std;

class StackUnderFlowException
{
    public:
        StackUnderFlowException()
        {
            cout << "Stack underflow" << endl;
        }
};

struct Node
{
    int data;
    Node* link;
};

class ListStack
{
    private:
        Node* top;
        int count;

  public:
      ListStack()
      {
          top = NULL;
          count = 0;
    }

    void Push(int element)
    {
        Node* temp = new Node();
        temp->data = element;
        temp->link = top;
        top = temp;
        count++;
    }

    int Pop()
    {
        if ( top == NULL )
            {
                throw new StackUnderFlowException();
            }
            int ret = top->data;
            Node* temp = top->link;
            delete top;
            top = temp;
            count--;
            return ret;
    }

    int Top()
    {
        return top->data;
    }

    int Size()
    {
        return count;
    }

    bool isEmpty()
    {
        return ( top == NULL ) ? true : false;
    }
};

int main()
{
    ListStack s;
    try {
        if ( s.isEmpty() )
            {
            cout << "Stack is empty" << endl;
            }
        // Push elements
        s.Push(100);
        s.Push(200);
        // Size of stack
        cout << "Size of stack = " << s.Size() << endl;
        // Top element
        cout << s.Top() << endl;
        // Pop element
        cout << s.Pop() << endl;
      // Pop element
        cout << s.Pop() << endl;
      // Pop element
        cout << s.Pop() << endl;
    }
    catch (...) {
        cout << "Some exception occured" << endl;
    }
}

OUTPUT:-
Stack is empty
Size of stack = 2
200
200
100
Stack underflow
Some exception occured
